50pcs 10A 220V 2 Pin Push Quick Wire Cable Connector White Wiring Terminal Ready Stock

MYR 1.44
50pcs 10A 220V 2 Pin Push Quick Wire Cable Connector White Wiring Terminal Ready Stock Ratings: 0 - 0 votes


2 Pin Push Quick Wire Cable Connector

Features:

This terminal block is a spring clamp electrical connector where the individual stripped conductors are clamped down to the metal part by means of a spring.

Compare to screw-type terminal block, this Spring Clamp Terminal Block gives you a constant connection.

It always exerts the same force on the conductor, regardless of the influence of the user.

This Spring Clamp Terminal Block is extremely user friendly, it allows you to wire one circuit to another without any tools.

It is suitable for solid wires and multi-stranded wires with a nominal cross section of 0.08 - 2.5 mm.

There are many applications that use Spring Clamp Terminal Blocks.

They are often used to connect switches, speakers, and for connecting low power appliances to plugs at home.

- The shell is made from High Standard Flame Retardant Engineering Plastic, practical and long service life.

- With high quality steel clamp pin of good elasticity and good conductive copper core, connectors can serve purpose well.

- Fast wire connection operation without drilling screw holes speeds up wiring process, quite convenient.

- Connect live wire to the part with L sign, and neutral wire to the part with N sign, sign is clearly visible.

- There are 50 quick connectors and you can replace electrical tape with these connectors.

Specifications:

Material: Polypropylene plastic, steel and copper

Voltage: 220V Current: 10A

Working Temperature: -40~150℃

Wiring: 0.3-2.5mm2(stranded wire), 0.3-1.5mm2(solid wire)

Size: 19.4 x 17.2 x 13.2mm / 0.76 x 0.67 x 0.51"

Quantity: 50pcs

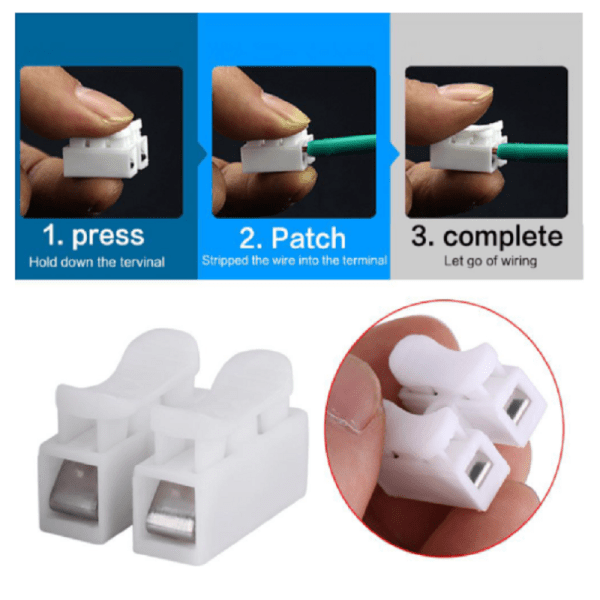

Wiring Methods:

1. Press down and hold the end of a connector.

2. Plug a stripped wire head in to the connector.

3. Release the end to complete the connection.

Package Size (LxWxH) : 10cmx10cmx5cm

Package Weight :0.1kg

Package Includes: 50pcs x Connectors
